Wireless Power Transfer

Wireless Power Transfer (WPT) systems transfer electric energy from a source to a load without any wired connection. WPTs are attractive for many industrial applications because of their advantages compared to the wired counterpart, such as no exposed wires, ease of charging, and fearless transmission of power in adverse environmental conditions. Adoption of WPTs to charge the on-board batteries of an electric vehicle (EV) has got attention from some companies, and efforts are being made for development and improvement of the various associated topologies.

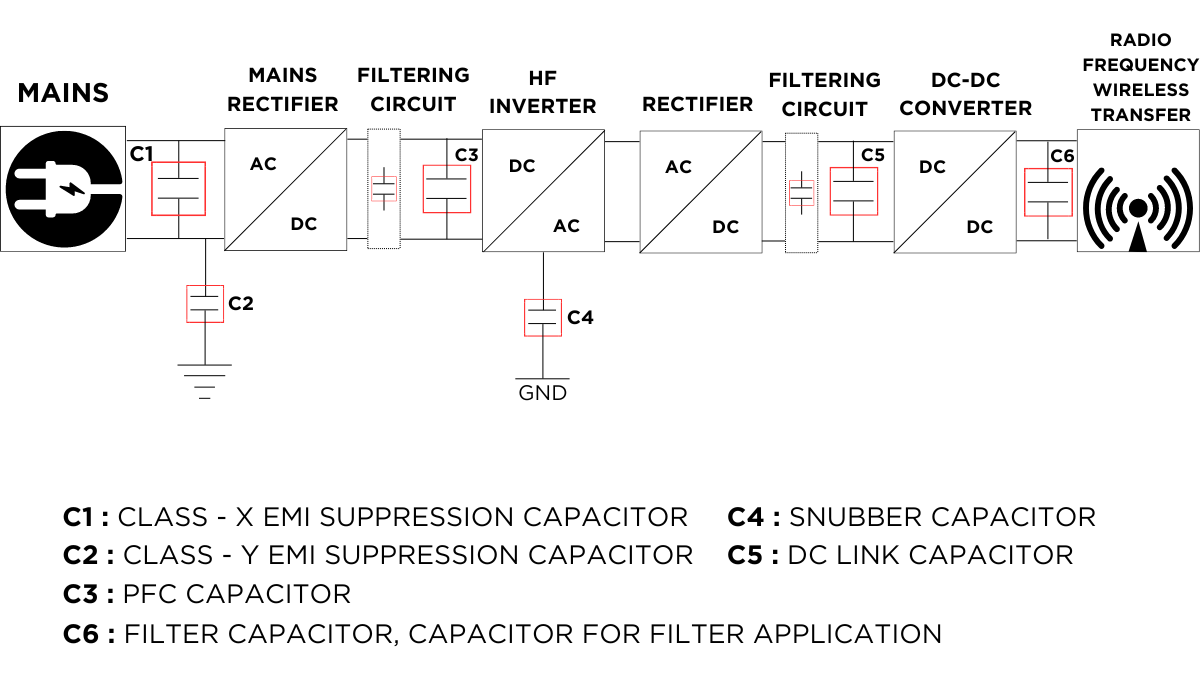

Capacitors used for WPT application are listed below.

Wireless Power Transfer

Wireless Power Transfer

Deki Capacitor Range for Wireless Power Transfer Application

Series Name Deki Series Code Capacitance Range Rated Voltage

66

0.001μF to 1.8μF

630VDC-2000VDC

68

0.0068µF to 0.47µF

1000VDC -2000VDC

121

0.047µF-5.6µF

700Vdc-3000Vdc

91

1µF to 210 µF

450VDC - 1500VDC

33

0.001µF to 1µF

300VAC

207

0.01µF to 10µF

310VAC

159

0.047µF-2.2µF

310 VAC - 440 VAC

151

0.01µF to 10µF

310VAC

150

1.5µF to 10µF

700VDC-3000VDC

27

0.001µF to 4.7µF

63VDC-630VDC

04

0.001µF to 6.8µF

100VDC-1000VDC

02

0.01µF to 4.7µF

100VDC-1000VDC

05

0.0001µF to 0.15µF

630V DC - 3000V DC

29

0.0001µF to 0.15µF

630VDC -2000VDC

63

0.0022µF to 0.18 µF

1000VDC -2000VDC

88

0.068µF to 3.9µF

450VDC - 630VDC

113

0.027µF - 0.1 µF

100VDC-400VDC

129

0.047µF to 0.1µF

1000VDC -2000VDC

19

0.0047µF to 1µF

440VAC
