Electric Motor Drive

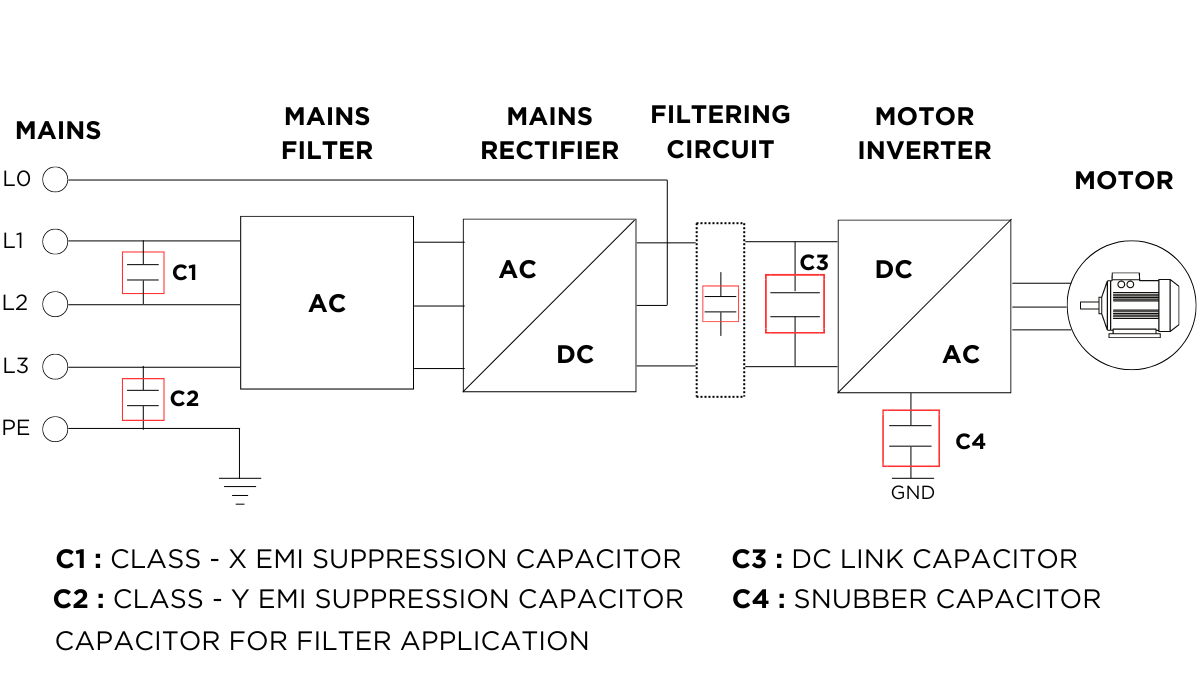

An electric motor drive and known as motor drive is a control circuit that controls the speed of electric motor by controlling its voltage, current and frequency to a certain level to obtain desired speed of motor.

Capacitors used for Electric motor drive application are listed below.

Electric Motor Drive

Electric Motor Drive

Deki Capacitor Range for Electric Motor Drive Application

Series Name Deki Series Code Capacitance Range Rated Voltage

66

0.001μF to 1.8μF

630VDC-2000VDC

04

0.001µF to 6.8µF

100VDC-1000VDC

27

0.001µF to 4.7µF

63VDC-630VDC

30

0.001µF to 0.15 µF

1000 VDC - 2000 VDC

16

0.001µF to 1µF

63VDC-630VDC

23

0.1µF to 1.0µF

275VAC, 310VAC

02

0.01µF to 4.7µF

100VDC-1000VDC

06

0.001µF to 10µF

100VDC-1000VDC

13

0.01µF to 1µF

63Vdc to 630Vdc

24

0.047µF to 1.0µF

310VAC

14

0.001µF to 1.5µF

63VDC-630VDC

15

0.01µF to 0.22µF

100VDC-400VDC

29

0.0001µF to 0.15µF

630VDC -2000VDC

113

0.027µF - 0.1 µF

100VDC-400VDC

129

0.047µF to 0.1µF

1000VDC -2000VDC

19

0.0047µF to 1µF

440VAC
